Multimedia Single Mode 0.9mm Fiber Optic Connector SC UPC APC OM3 2.0 3.0 Blue Green

Product Categories
Shenzhen Begate Technology Co.,Ltd.
Contact Now

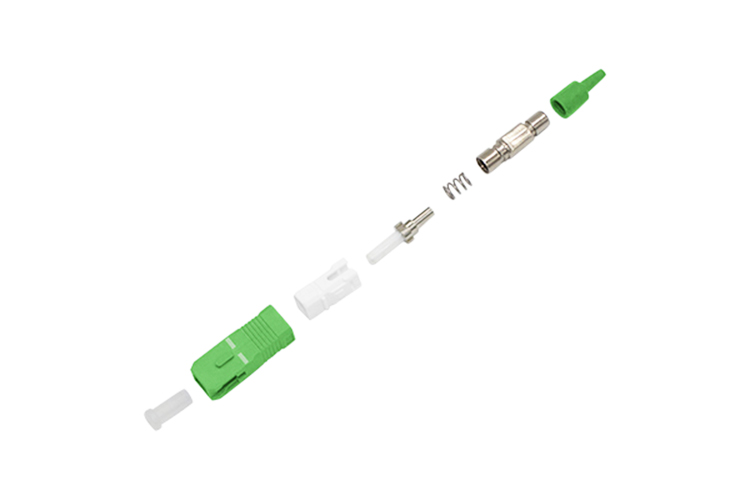

Multimedia Single Mode 0.9mm Fiber Optic Connector SC UPC APC OM3 2.0 3.0 Blue Green

Brand Name : Begate

Model Number : SC UPC/APC 0.9mm Connector

Certification : CE/RoHS/ISO9001

Place of Origin : Shenzhen, China

MOQ : We are the factory. No MOQ, 1piece is ok.

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100000 Piece/Pieces per Day

Delivery Time : Samples within 3 days, bulk orders within 15 working days

Packaging Details : 1. PE Bag 2. Outer Carton 3. Customized Request

Return loss : > 55db,≥50dB,max.50dB (SC/UPC),≤-40dB,more than 55db

Insertion loss : IL<0.2db,no more than 0.3db,≤ 0.3dB,>5,≤0.2 dB

Product name : Fiber Optic SC UPC Fiber Connector,SC UPC SC APC field Fiber Optic Terminators connector,FTTH SC connector

Color : Blue,Customized,OEM

Application : FTTH FTTB FTTX Network,CATV,to make patch cord,Telecommunication

Fiber cable type : 3x2mm Flat cable,2.0mm 3.0mm cable,3mm Drop cable,3.1*2.0mm Butterfly Optical Cable

Material : PVC,Plastic

Lead time : 3 days,3-7working days

Contact Now

Single Mode 0.9mm Fiber Optic Connector SC UPC/APC OM3 2.0 3.0 Blue Green

Product representation of Fiber Optic Connector:

Connectors are made of ceramic, metal, plastic, and so on. Each connector has a different color frame and tail sleeve for selection. Through solidification grinding and other processes, optical fiber connectors are used to make jumpers or tail fibers with various types of optical cables. They are widely used in communication rooms, home-to-home optical fibers, local area networks, optical fiber sensors, optical fiber communication systems, optical fiber connection transmission equipment, national defense preparedness, and so on.

Product Details of Fiber Optic Connector:

Parameter Unit SM MM
PC UPC APC PC
Insertion Loss (Typical) dB ≤0.3 ≤0.3 ≤0.3 ≤0.3
Return loss dB ≥45 ≥50 ≥60 ≥30
Operating Wavelength nm 1310, 1510 850
Exchangeability dB ≤0.2
Vibration dB ≤0.2
Operating Temperature °C -40~+75
Storage Temperature °C -45~+85
Boot color black,red,green,white,yellow,gray,blue
Fiber Connector FC,SC,ST,LC,MU,MPO,MTRJ
Cable Diameter mm φ 3.0, φ 2.0,φ 0.9
Ferrule Ferrule concentricity: SM<1um MM<4um
Ferrule inner diameter: SM: 125um MM: 126-130um
Ferrule outer diameter: FC SC ST: 250um LC MU: 125um

Features of Fiber Optic Connector:

1. Low insertion loss, high return loss
2. Excellent Temperature stability
3. Good repeatability and exchangeability
4. Excellent mechanical endurance
5. Strict curing time and temperature control
6. Strict testing standards and methods for quality
7. Environment protection (ROHS Compliance)
8. The fiber optic patch cord can be customized according to customers specific requirements

(Customized Connector/Length/package...)
9. 100% NEW raw material and well quality control ensure the best lifetime.

Multimedia Single Mode 0.9mm Fiber Optic Connector SC UPC APC OM3 2.0 3.0 Blue Green

Multimedia Single Mode 0.9mm Fiber Optic Connector SC UPC APC OM3 2.0 3.0 Blue Green

Applications of Fiber Optic Connectors:

1. CATV
2. Telecom Network
3. Metro
4. Multimedia
5. Data processing
6. Premise installation
7. Gigabit Ethernet

Factory workshop:

Multimedia Single Mode 0.9mm Fiber Optic Connector SC UPC APC OM3 2.0 3.0 Blue Green

Multimedia Single Mode 0.9mm Fiber Optic Connector SC UPC APC OM3 2.0 3.0 Blue Green

Multimedia Single Mode 0.9mm Fiber Optic Connector SC UPC APC OM3 2.0 3.0 Blue Green

FAQ:

Q1: Are you a manufacturer?
A: Yes, we are a manufacturer who has 3 factories and welcome to visit!

Q2: What is your MOQ?
A: We are the factory. No MOQ, One piece is available.

Q3:Can you provide the OEM service?
A: Sure, we have the complete production line, we could do the production as your request.

Q4. Can I have a sample order for this product?
A: Yes, for patchcord, FREE SAMPLE is avaible to test and check quality. Mixed samples are acceptable.

Q5: How long is your delivery time?
A: Generally it is 2-5days if the goods are in stock. or it is 7-15 days if the goods are out of stock. The lead time mainly depends on quantity.

Q6: Can I negotiate the prices?
A:Yes, special discounts are available. The more quantities, the cheaper prices.

Q7: How much will the shipping charges be?
A:It depends on the size of your shipment and the method of shipping. We will offer the charge to you as per you requested.Any more questions upon our products, and our company? please feel free to contact us at any time.
